Continue Roasting Machine Roast Equipment for Rice Puffing

Product Description

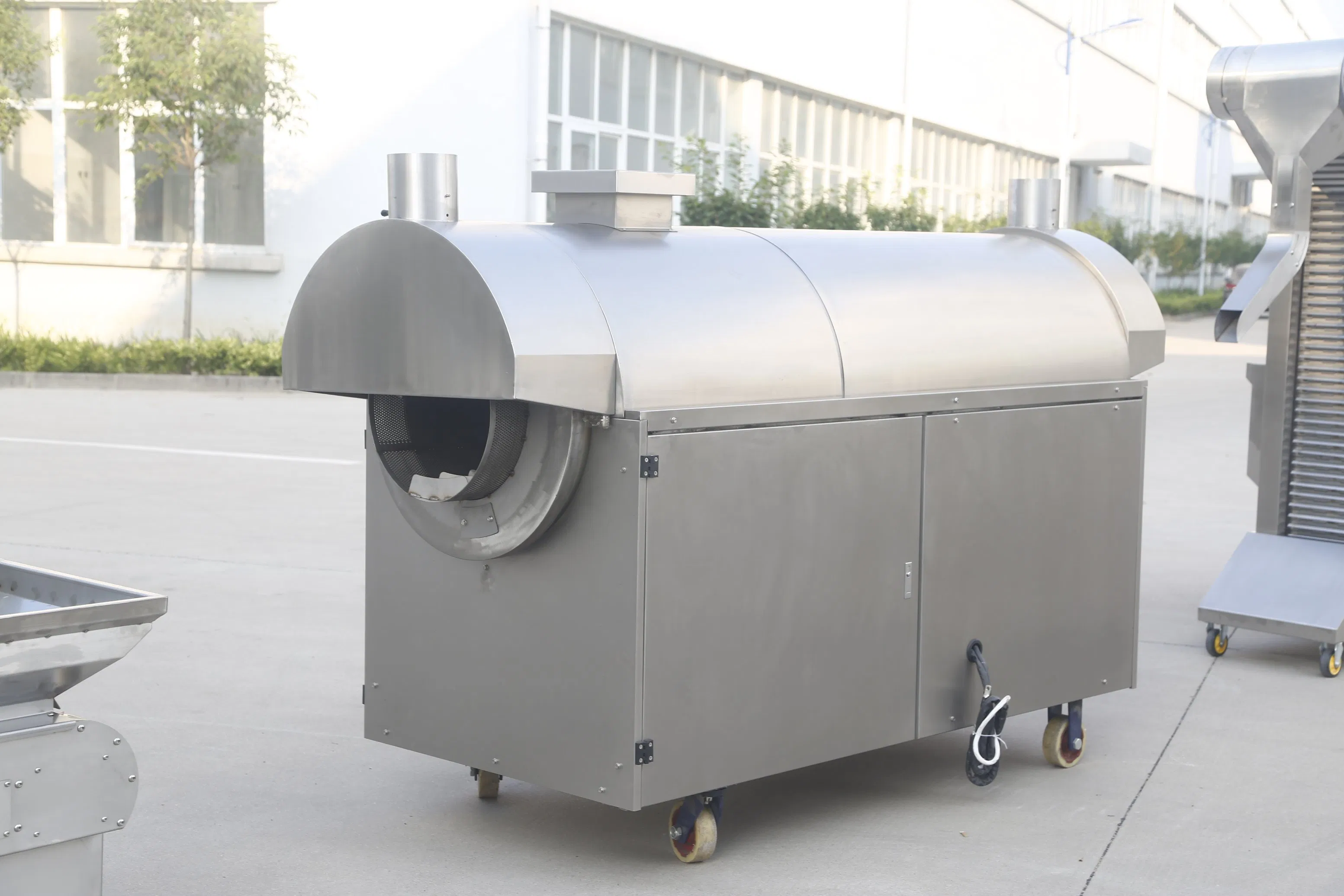

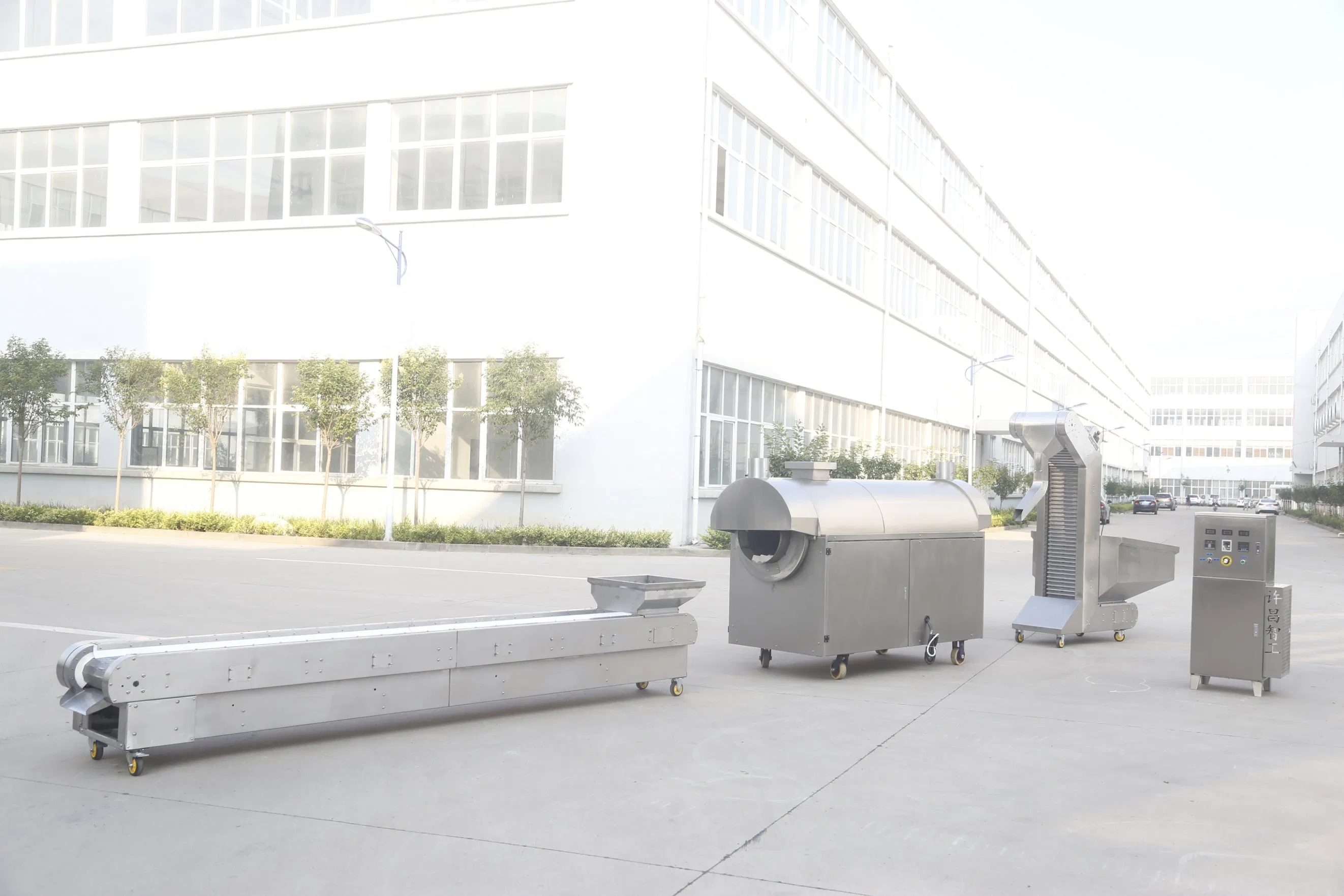

Description of the roasting processing machine DCCL6-20

Electromagnetic roasting machine DCCL6-20 adopts supersonic electricity heating to heat the roller directly. The machine is made of 304 stainless steel and it is mainly used to dry and roast all kinds of nuts and seeds or condiments. It's very intelligent, low consumption and environment protecton.

This roaster have drum speed controler and tempreture controler, customer can adjust it by themselves according to different raw materials roasting request. This model roaster can be used in the nuts and snacks shops and BIG-scale seeds processing industry.

The working principle:

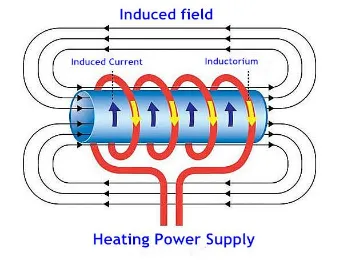

The electromagnetic heating system: the electromagnetic control box make the copper wire plate generate the magnetic field, when
the roller rotating will cut the magnetic induction line and generate wave to influence the metal roller, and make the metal
roller self-heating. The copper wire plate under the roller, the wire plate is cold, will not be hot when the equipment working,
just generate the magnetic field. The metal roller self-heating.

Our Advantages

Protect environment: electromagnetism transform into heat energy to process the materials, carbon-free.

Save energy & low power consumption:roasting machine use the roller with the composite materials to decrease the energy lost. Heat efficiency95%, save 45% electricity. carbon-free.

Save electricity and time: the electromagnetism heating system make the roller heat by itself, without heat medium.Work 30seconds, the temperature can be 100 degree centigrade.

High temperature:Max.400 degree centigrade.

Human interface: humanization design, intelligent control. Easy to set up the parameter.

Good materials: made of stainless steel, food grade, make sure the food is safe and clean, up to GMP standard.

Model	Capacity	Voltage	Power range	Motor power	Size	weight	Roller size
DCCZ3-4	8-10kg/h	220v	0.6-3kw	0.18kw	73x51x80cm	75kg	30x40cm
DCCZ3-6	8-15kg/h	220v	0.7-3.5kw	0.18kw	90x51x80cm	90kg	40x50cm
DCCZ4-5	10-15kg/h	220v	1-5kw	0.25kw	90x57x115cm	140kg
DCCZ5-5	10-30kg/h	380v	1.5-7.5kw	0.25kw	93x66x127cm	200kg	50x50cm
DCCZ5-10	30-60kg/h	380v	3-15kw	0.4kw	158x75x133cm	300kg	50x100cm
DCCZ7-10	50-250kg/h	380v	4-32kw	1.1kw	165x95x152cm	480kg	70x100cm
DCCZ7-15	100-300kg/h	380v	6-48kw	1.5kw	200x95x152cm	580kg	70x150cm
DCCZ9-16	150-300kg/h	380v	7-56kw	3kw	200x119x165cm	780kg	90x160cm
DCCZ12-16	150-450kg/h	380v	7.5-60kw	4kw	217x154x223cm	900kg	120x160cm
DCCL6-20	75-150kg/h	380v	4-32kw	1.5kw	250x95x160cm	860kg	60x200cm
DCCL7-40	150-300kg/h	380v	7.5-60kw	2.2kw	450x101x160cm	*	70x400cm
DCCL7-60	300-400kg/h	380v	15-120kw	3kw	650x101x160cm	*	70x600cm
DCCL9-100	600-1000kg/h	380v	25-200kw	5.5kw	1050x120x194cm	*	90x1000cm

Special snake shop: sunflower seeds, peanut, cashew nuts, almond, chestnuts, walnut, hazelnut, pistachio, inca inchi, macadamia
Nuts oil industry: sesame seeds, peanut, rape seeds, soybean
Beverage industry: coffee bean, tartary buckwheat, oatmeal, barley malt.Tea processing: filming and drying for the tea.
Food puffing industry: rice, millet, rice cake, rice chips, shrimp chips.
Grain processing industry: rice, highland barley, beans, grain.
Condiment industry: chili pepper, anise and fennel.
Pharmaceutical industry: traditional Chinese medicine.es in all shapes.

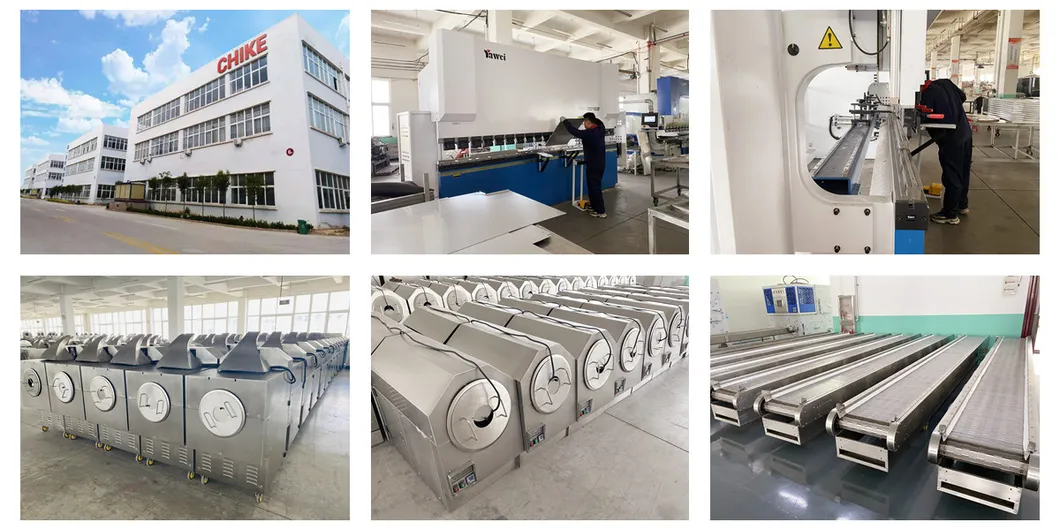

Xuchang Chike Machinery Manufacturing Co.,Ltd was established in 1995. The factory is located in the beautiful ecological garden city of Xuchang, and International trade department is located in Zhengzhou which is the capital of Henan province, 48km from Zhengzhou International Airport, driving for about 50 minutes.

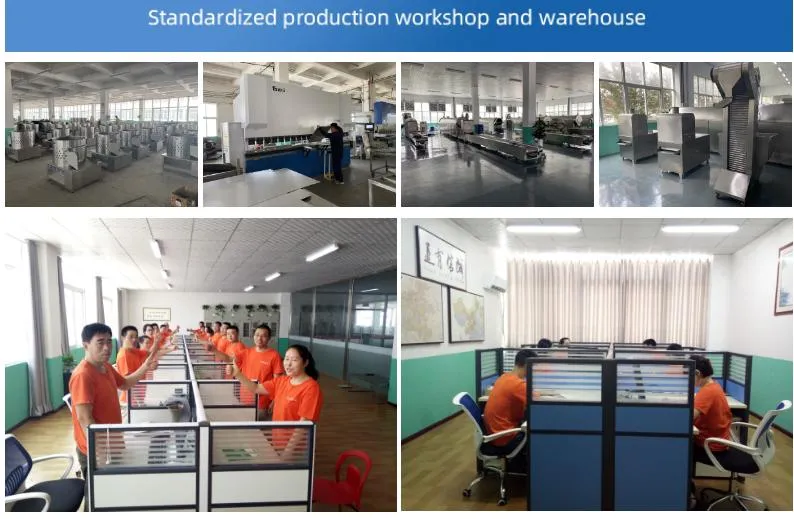

Our main products: Electromagnetic roasting machine& food processing production line. The workshop covers an area of about 30,000 square meters and has three advanced production lines.There are more than 300 employees, including 5 R&D personnel, 5 quality control personnel and 10 international trade departments. Our products are sold to more than 30 countries and regions.

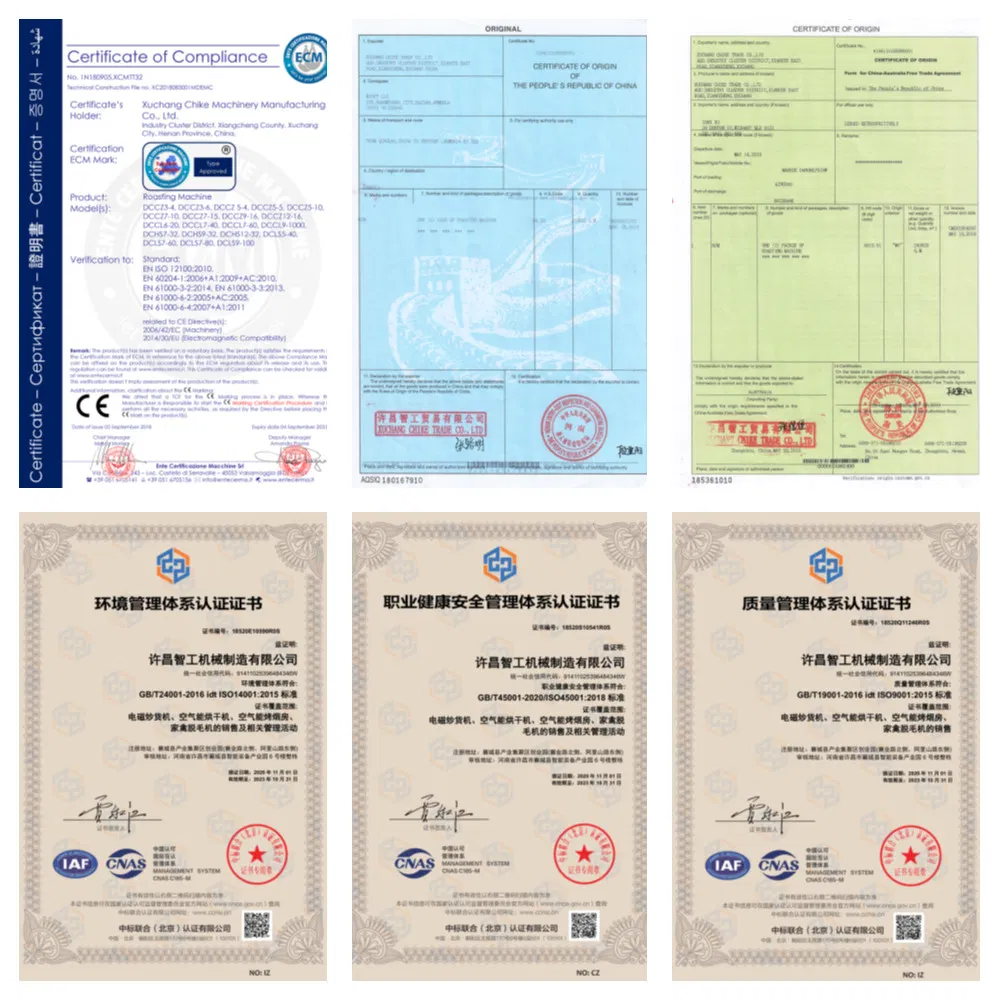

We can customize our products according to customers' needs and meet different needs of different customers. After more than 20 years of research, the company has more than 20 practical invention patents and appearance design patent, and obtained the ISO, CE, SASO and other international certifications. In 2016 our company was identified the vice President of company as roasted nuts chamber of commerce in Henan province.
